The CNC machine tool SD2500V7-BT40 is a customized large-scale profile machining center

Machine Introduction:
&Nbsp; 1. The SD2500V7-BT40 model series is a large-scale profile machining center specially designed for customers; Sky track structure; The three-axis motion mechanism is designed at the top of the crossbeam, which is lightweight, convenient, and easy to clean. The Y-axis head moves forward and backward, the X-axis head moves left and right, and the Z-axis spindle moves up and down< Br/>
2. Additional functions such as fourth rotation axis, side milling head, and probe can be added< Br/>
3. Especially suitable for precision engraving, milling, drilling, tapping and other processing of various types of steel, copper, aluminum, acrylic, plastic and other parts< Br/>
&Nbsp& Nbsp& Nbsp< Br/>

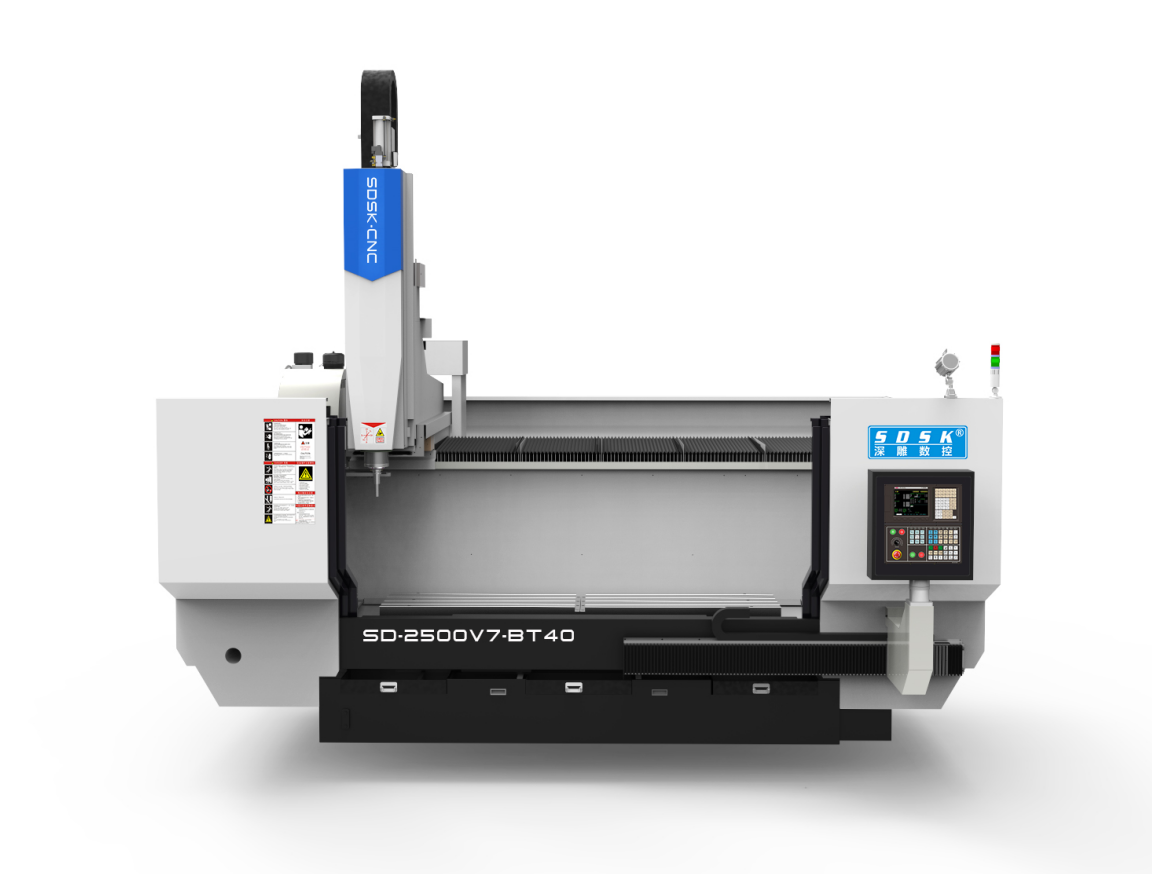

(Similar image, subject to actual product)





2、 List of Main Machine Configuration (Unit: mm)
Regulations; Grid; Speak; bright
quantity
Origin
Mitsubishi system/XYZ servo motor, Z-band brake/11KW spindle servo drive
full set
Japan
Taiwan TBI precision ball screw (x6020, YZ4020) for X/Y/Z axis
full set
Taiwan
X/Y/Z axis using Taiwan Shangyin/Yintai/Dinghan& Nbsp; Precision level (X35, Z35 ball linear guide, Y35 roller linear guide)
full set
Taiwan
Taiwan Dayue Direct Connection Long Nose Spindle BT40/150/12000rpm/Circular Water Spray (Equipped with Hydraulic Knife Punching Cylinder)
1 unit
Shenzhen
24T disc cutter magazine (Okada)
1 set
Taiwan
The XYZ axis of the bed is made of all cast iron, with a steel structure base. The main accessories are cast iron mechanical parts (HT300)
1 set
self-control
Distribution cabinet constant temperature air conditioning system (Red)
1 set
Dongguan
Schneider Electrical Accessories (Schneider)
1 batch
Tianjin
Import TBI/KOYO; P-grade angular contact paired bearings
full set
Taiwan
Spindle oil cooler (Reid)
1 unit
Dongguan
Electronic handwheel (Yupu)
1 set
Guangzhou
Knife setting instrument (Shenzhen Jingdiao)
1 unit
self-control
X/Y/Z axis with organ cover
1 set each
self-control
X/Y/Z axis plastic drag chain (Dingtai)
1 set each
Dongguan
Automatic lubrication oil pump (Proton)
1 set
Dongguan
Air filter (Japanese Lehman M107-A air filter)
1 set
Zhejiang
Water spray device
1 set
self-control
Air gun, water gun
1 each
Shenzhen
Water pump (Snell)
1 unit
Changzhou
Machine tool accessories
1 set
Shenzhen
BT40 Knife Handle/Complete Set of Reduced Nipple (Three in One)
5
Shenzhen
Chain plate slag discharge machine (optional)
nothing
self-control
The main door can be additionally equipped with a pneumatic double opening door
nothing
self-control
3、 Main technical parameters of the equipment: (unit: mm)
model
SD2560V7-BT40
External dimensions
Approximately 4200 in length, 3530 in width, and 3200 in height
Workbench size
X2500 * Y600 (T-slot M16)
Spindle nose end to countertop
Maximum 850 to minimum 150
X/Y/Z stroke
X: 2550

Y: 600

Z: 700
Maximum fast moving speed XYZ
X: 35 meters per minute

Y: 48 meters/minute

Z: 48 meters/minute
Maximum processing speed
12 meters per minute
Servo system XYZ
AC servo
System resolution
zero point zero zero two
Three axis verticality
0.02mm
Whole machine positioning accuracy
&Plusmn; 0.02mm
Localization accuracy
Within 300 mm± 0.01mm
Repetitive positioning accuracy
0.005mm
Number of spindles
1
Spindle servo drive power
11KW
Spindle servo torque
52.5N. m
Spindle speed
12000 rpm/min
Clamping tool handle
BT40
Disk cutter magazine
24T
Knife changing method
automatic
Knife alignment method
automatic
The countertop bears a load
2000Kg
Rated voltage
380V/50HZ
Maximum power of the entire machine
23KW
Overall weight
About 8500kg


4、 Standard configuration and accessories for the host:
one
Controller
eleven
1 mechanical, electrical, and operation manual
two
Direct connection long nose spindle BT40/150/12000
twelve
Rigid tapping function
three
Automatic lubrication system
thirteen
Distribution cabinet constant temperature air conditioning
four
Adjustable foundation cushion block
fourteen
Operation Manual, Program Manual, and User Manual
five
Toolbox
fifteen
5 BT40 blade heads (including rivets and wrenches)
six
Work lights
sixteen
BT40 locking tool holder
seven
Warning lights
seventeen
&Nbsp; M16 Ma Tie
eight
Spindle blowing device
eighteen
One 6-inch screwdriver
nine
transmission line
nineteen
Lock Mouth; ER32 (4-25)  1 set
ten
Semi enclosed cover
twenty
Shield


5、 Machine environment and hardware facilities requirements
Number
Environmental projects
Project Requirements Standards
one
Power requirements
AC380V (4P) 50-60Hz, air switch 60A, power supply voltage fluctuation range 380V± Within 10%
two
air compressor
Using screw compressor, air storage tank, three-stage filtration,≥ 0.55Mpa, flow rate≥ 100L/min
three
Vacuum pressure
&Ge; 0.6 MPa
four
Air dryer
Must have an air dryer with automatic drainage function
